Solar Motors

Types of Sloar Motars

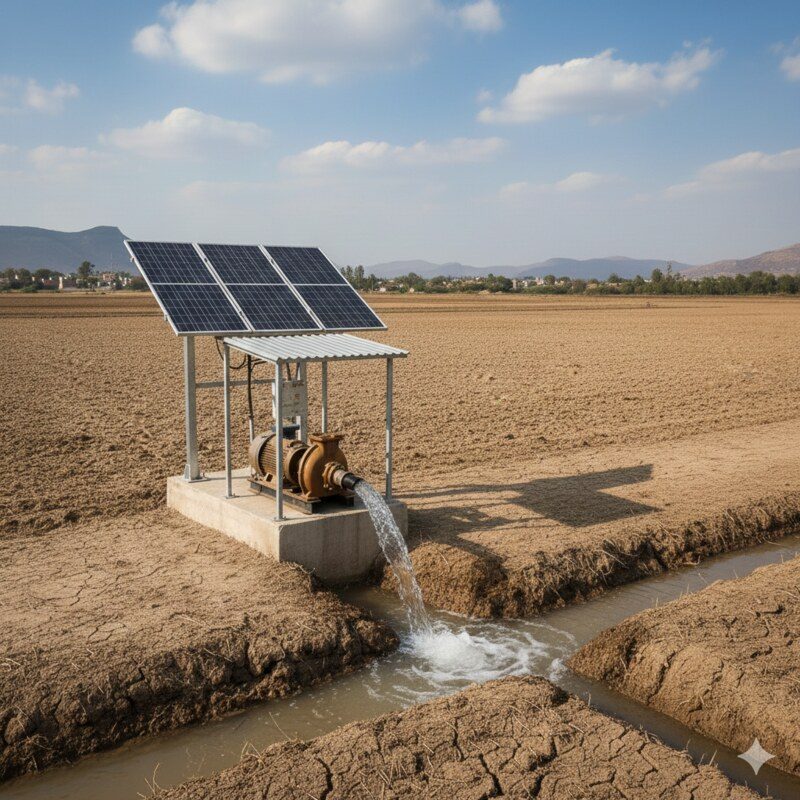

5HP Solar Motor

5hp solar motor

Main Specifications

  • Motor Power: 5 HP (≈ 3.7 kW)

  • Motor Type: DC Brushless / AC Induction (with inverter)

  • Pump Type: Submersible or Surface Pump

  • Solar Panel Capacity: 4 kW – 5.5 kW

  • Controller: MPPT Solar Pump Controller

  • Operating Voltage: 48V – 380V (system based)

  • Maximum Head Range: 20 meters – 120 meters

  • Water Discharge: 40,000 – 80,000 liters per day (depends on depth & sunlight)

  • Pipe Size: 2 inch – 3 inch outlet

  • Starting Type: Automatic (sunlight start)

  • Protection Features: Dry run protection, overload protection, low voltage protection

  • Panel Life: 20–25 years

  • Motor Life: 8–12 years

Price in India

₹100000

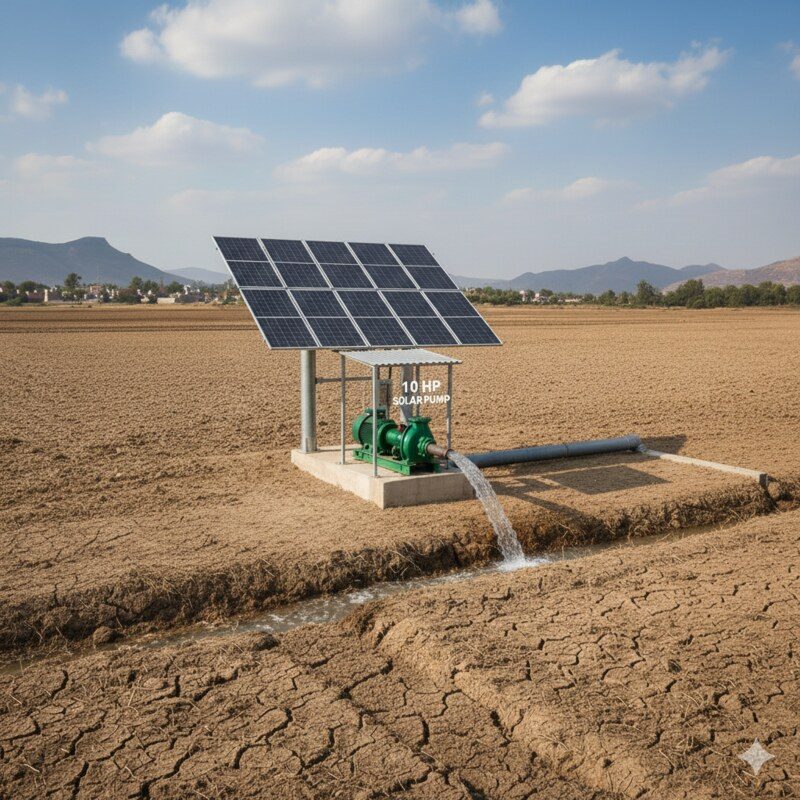

10HP Solar Motor

10hp solar motar

Main Specifications

  • Motor Power: 10 HP (≈ 7.5 kW)

  • Motor Type: DC Brushless or AC Induction Motor

  • Pump Type: Submersible Pump / Surface Pump

  • Solar Panel Capacity: 9000W – 10000W (9kW–10kW)

  • Controller: MPPT Solar Pump Controller / VFD Controller

  • Operating Voltage: 350V – 800V or 380V system voltage

  • Maximum Head Range: 30 meters – 220 meters

  • Water Discharge Capacity: 94,000 – 495,000+ liters per day (depends on head & sunlight)

  • Maximum Flow Rate: up to 1000–1500 liters per minute

  • Pipe Outlet Size: 2 inch – 4 inch

  • Motor Speed: around 2800–3600 RPM

  • Protection Features: Dry run, overload, low voltage, reverse polarity protection

  • Panel Life: 20–25 years

  • Motor Life: 8–12 years (typical agriculture usage)

Price in India

₹200000

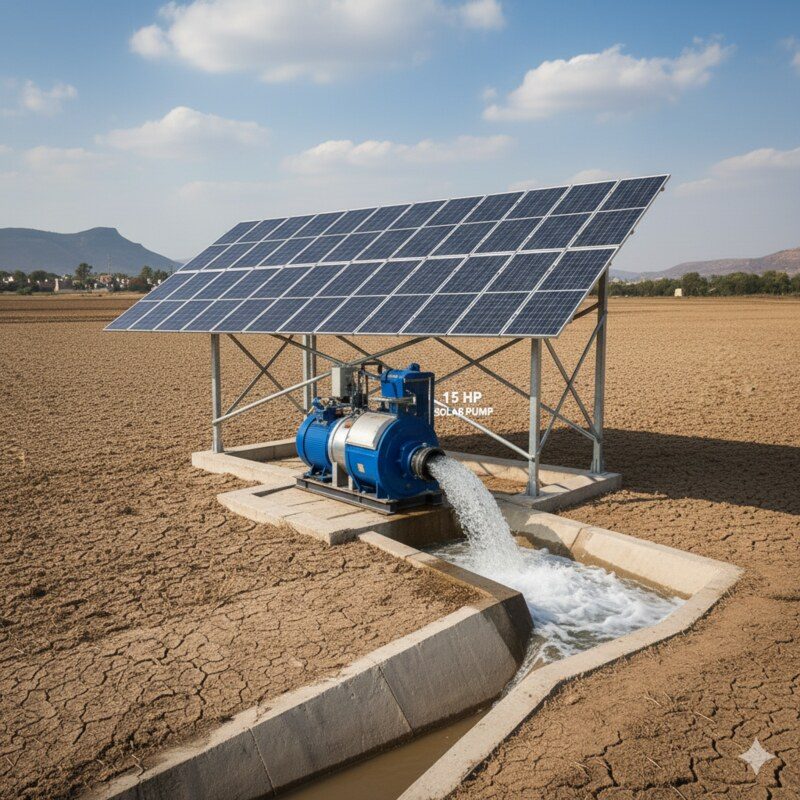

15HP Solar Motor

15hp solar motor

 Main Specifications

  • Motor Power: 15 HP (≈ 11–12 kW)

  • Motor Type: DC Brushless or AC Induction (with appropriate solar inverter)

  • Pump Type: Solar Submersible Pump or Surface Pump

  • Recommended Solar Panel Capacity: ~13 kW – 16 kW

  • Controller: MPPT Solar Pump Controller / VFD Solar Controller

  • Operating Voltage: Typically 400 V – 800 V (system dependent)

  • Maximum Head Range: ~40 m – 250 m (depending on site & application)

  • Water Discharge Capacity: ~150,000 – 750,000 L/day (varies with head & solar input)

  • Maximum Flow Rate: ~1200 – 1800 L/min (system and solar irradiation dependent)

  • Outlet Pipe Size: 3 inch – 5 inch (based on pump model)

  • Protection Features: Dry-run protection, overload protection, low-voltage protection, reverse polarity protection

  • Starting Method: Automatic (sunlight driven)

  • Solar Panel Life: ~20–25 years

  • Motor Life: ~8–12 years (typical usage)

Price in India

₹250000
